Fuse boards

Fuse Board and Fuse Box Replacement in Liverpool

Old fuse box with wire fuses, or a plastic consumer unit that keeps tripping? Harry swaps it for a modern metal consumer unit with RCBO protection on each circuit and surge protection, then tests and labels every way.

Get a free quote Price my fuse board

NAPIT approved5.0 on Google from 17 reviews

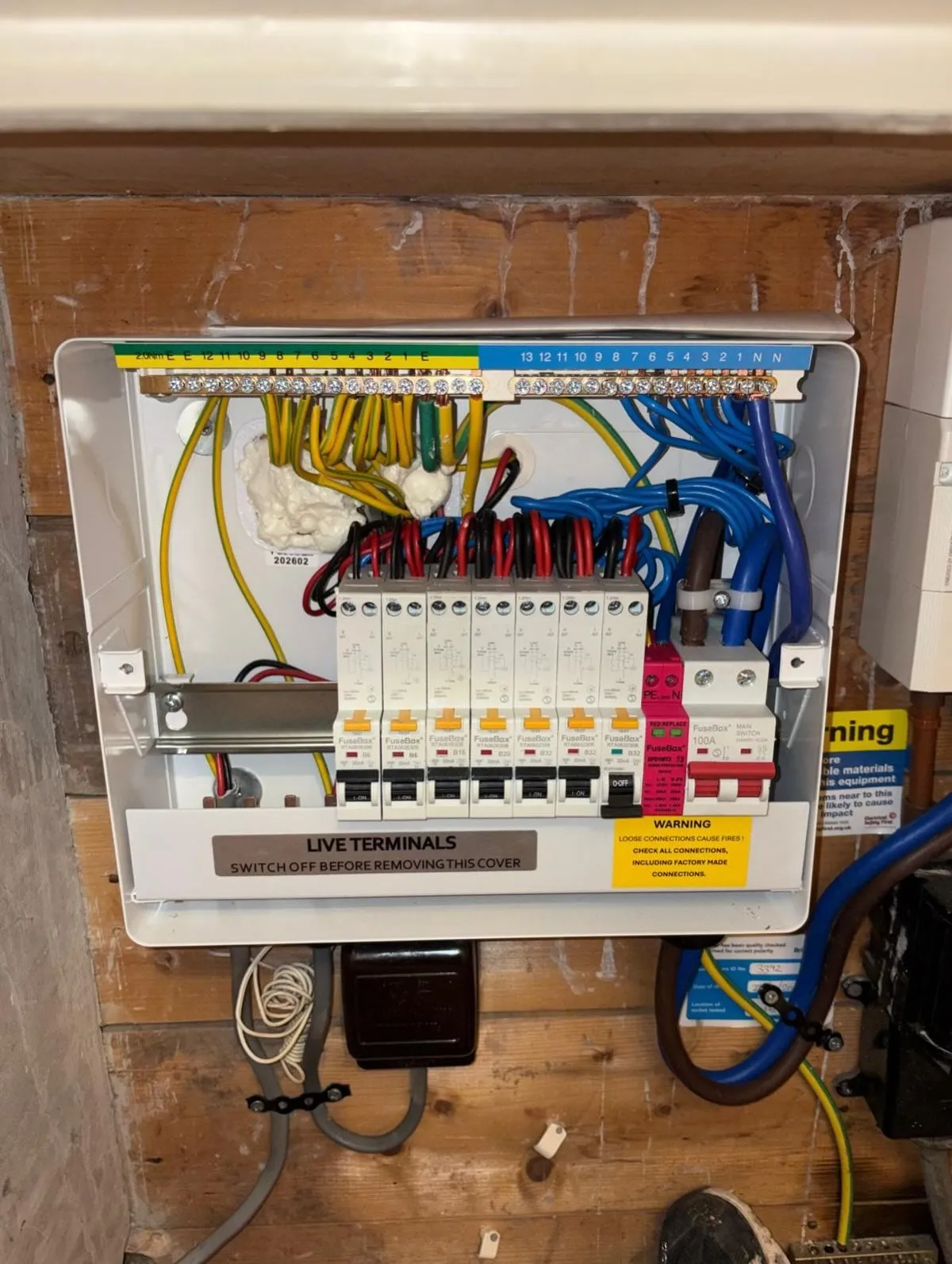

A new consumer unit with RCBOs fitted by Harry Radford — Harry's own job

Guide price: From £600
Time on site: Usually one day
Protection: RCBOs + surge
Certificate: Notified to Building Control

Who it is for

Signs your fuse box needs replacing

Fuse box, fuse board and consumer unit are the same thing. These are the signs yours is due.

Pull-out fuses with wire in them
A rewireable fuse box gives no protection against electric shock. It is the most common reason people replace a board.
Breakers that trip when the kettle and toaster go on together
One RCD covering half the house means one fault can knock out lots of circuits at once.
A plastic consumer unit
Since 2016 new domestic boards must be non-combustible, usually metal. Plastic ones are not dangerous by default, but are often flagged on an EICR.
An EICR that coded the board C2
No RCD protection on sockets or a damaged board will be coded, and needs fixing.
Scorch marks, buzzing or a hot smell
Turn off the main switch if it is safe to do so, and get it looked at straight away.
An EV charger or new circuit on the way
An old board may have no spare way or the wrong protection for a new circuit.

What is included

What a fuse board replacement includes

Each line below goes on your written quote.

What should be on an electrician's quote

Written priceFuse board replacement

01Circuits checked firstEvery existing circuit tested before the new board goes in, so any fault is found up front, not after.
02Old board removedThe old fuse box or consumer unit disconnected and taken away.
03New metal consumer unitA modern board to the current wiring regulations. Harry's recent jobs use FuseBox boards.
04RCBO on each circuitA combined breaker and RCD on each circuit, so one fault only trips that one circuit.
05Surge protectionA surge protection device to guard against voltage spikes.
06Earthing and bonding checkedMain earth and bonding to gas and water pipes checked and brought up to standard where needed.
07Every circuit labelledClear labels so you know which breaker does what.
08Testing and certificateEvery circuit tested after the change and an Electrical Installation Certificate issued.
09Building Control notifiedA consumer unit replacement is notifiable under Part P. Harry self-certifies through NAPIT, and you receive a Building Regulations compliance certificate.

How it runs

How the day goes

Most fuse board swaps are done in a single day.

BeforePhotos and a priceSend Harry a photo of your current board. He confirms the price and how many ways you need.
MorningTest and power offHarry tests the existing circuits, then turns the power off and removes the old board.
AfternoonNew board in and testedThe new consumer unit goes in, the circuits are connected and every one is tested before the power comes back on.
AfterLabels and paperworkHarry shows you how the board works. Your certificate is emailed, and the Building Regulations certificate follows by post.

Price guide

What a new fuse board costs

The price depends on how many circuits you have and what is there now.

Price my fuse board

Job	What it covers	Guide price
Flat or 1 to 2 bed house	Metal consumer unit, RCBOs, surge protection, testing, certificate	From £600
3 bed house	As above	From £650
4 bed house or bigger	More circuits need more RCBOs	From £800
Faults found on the old circuits	Anything that fails testing before the swap	Quoted on the visit
Moving the board	New position, circuits extended to it	+ £250
Electric shower circuit	Added at the same time as the board	+ £350

These are Harry's own starting prices. Every home is different, so Harry looks at the job and confirms a fixed price before any work starts. Quotes are free, and nothing is booked until you have agreed the price.

Harry's work

Recent jobs by Harry

All jobs

Questions

Questions about
fuse boards

Not sure what you need? Send Harry a photo and he will tell you.

WhatsApp Harry

How much is a new fuse box?

A fuse board replacement from Harry starts from £600 for a flat or 1 to 2 bed house, £650 for 3 bed and £800 for 4 bed or bigger, with RCBOs, surge protection, testing and the certificate. Larger homes with more circuits cost more. Harry confirms a fixed price from a photo of your board.

What is a consumer unit?

A consumer unit is the modern name for a fuse box or fuse board. It is the box where your electricity is split into circuits, with breakers that switch off when there is a fault.

Fuse box vs consumer unit: is there a difference?

People use both names for the same thing. 'Fuse box' usually means an older board with pull-out wire fuses. 'Consumer unit' usually means a modern board with breakers and RCD protection.

How long does it take to replace a fuse box?

Most are done in a day. The power is off for part of it. If the old circuits have faults, finding and fixing them can add time.

Why does my fuse box keep tripping?

Usually a faulty appliance, water getting into an outdoor socket or light, or a damaged cable. Unplug everything and reset. If it trips again with nothing plugged in, the fault is in the wiring and needs an electrician.

Do I need a certificate for a new fuse board?

Yes. Replacing a consumer unit is notifiable under Part P of the Building Regulations. Harry notifies Building Control through NAPIT and you get an Electrical Installation Certificate plus a Building Regulations compliance certificate.

Advice

Read before
you decide

All advice

Areas covered

Fuse board replacement across Liverpool and Merseyside

Harry is based in Halewood and covers Liverpool, Halewood, Huyton, Widnes, Runcorn, St Helens, Kirkby, Bootle, Crosby, Maghull, Formby and Ormskirk. Not sure if you are in range? Send your postcode on WhatsApp.
